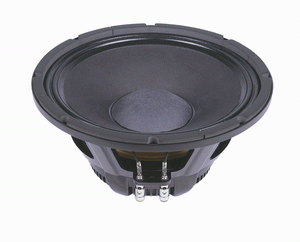

P-Audio SN-12MB 600W 12" Low Frequency Speaker
Click here to download the Datasheet (PDF)
The SN-12MB has been designed specifically for both direct radiator and horn loaded mid bass applications. This SN Series II design has been optimized for use in the critical 60Hz to 2000Hz vocal range and is an ideal choice for professional level three way designs. A typical 12 inch design must offer both good bandwidth, down to 60Hz, and good efficiency. The SN-12MB has all of its performance designed in the 125Hz and above range. This means that the efficiency can be optimized for this frequency range. High efficiency means that lower electrical power levels are required, thus improving both system reliability and reducing power compression.
The SN 12MB is a 12 inch (314mm) diameter design that features Neodymium magnets offering extremely high efficiency. The medium format 3 inch (76.2mm) voice coil design is an edge wound rectangular aluminium design to further maximize efficiency. Because weight is critical for portable systems or flown/suspended designs, the SN-12MB features a die cast aluminium chassis as well as the light weight Neodymium magnet structure. The performance parameters of the SN-12MB are optimized for professional level mid bass designs. If full range designs are specified the SN-12LF should be utilized.
P Audio features state of the art design and manufacturing that ensure the SN-12MB will provide very high power handling and reliability in high performance profession applications.
|Nominal Impedance 8 Ω
Power 600 Watt (rms)
SPL 1W@1M average sensitivity 100 dB
Frequency Response 60Hz - 2000Hz
Dimension Ø x H (cm) 31.4 x 14.8
Net Weight 3.7 kg (8.1 lbs)
Shipping Weight 4.9 kg (10.9 lbs)
Packing Dimension H x W x D (cm) 34.5 x 34.5 x 18.5 (0.8cu.ft) 13.6" x 13.6" x 7.3"
Magnet type Neodymium
Voice Coil Diameter 76.2 mm (3 inch)
Resonance Frequency Fs 62 Hz
DC. Resistance Re 5.2 Ω
Coil Inductance Le 0.33 mH
Mechanical Q Factor Qms 6.70
Electrical Q Factor Qes 0.44
Total Q Factor Qts 0.41
BL Product BL 17.00 Tm
Effective Moving Mass Mms 63.36 g
Equivalent Cas Air-Load Vas 43.64 Liters
Effective Piston Area Sd 0.055 Sqm
Half-Space Efficiency Eff 2.22 %
Airgap Height Hag 8.0 mm
Voice Coil Height Hvc 18.0 mm
Voice Coil Overhang Xmax 5.0 mm
