SN-15LF

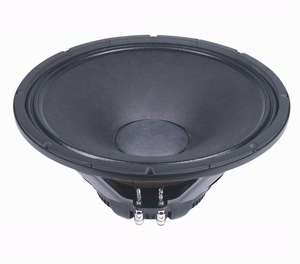

P-Audio SN-15LF 600W 15" Low Frequency Driver

Click here to download the Datasheet (PDF)


The P Audio SN Series II features a wide variety of very high performance to value ratio Neodymium based transducers. The SN-15LF is an excellent example of P Audio\'s high performance design philosophy. This transducer features a 15 inch (389mm) diameter chassis coupled to a very high energy product Neodymium based permanent magnetic structure. The combination of this high energy product magnetic structure and a die cast aluminum chassis make the SN-15LF a very high output device that also features very low weight. The operating bandwidth of 55Hz to 1500Hz make the SN-15LF and ideal choice for the bass and vocal fundamental range response of a professional two way system design. The cone material has been optimized for high internal damping and superior time domain performance in the vocal fundamental range. The performance parameters of the SN-15LF have been optimized for use in two way systems such as general purpose sound reinforcement systems where the high frequency response is provided by a high efficiency compression driver and horn. High power handling is achieved through the use of advanced thermal capacity voice coil adhesives and very high temperature rectangular aluminum edge wound voice coils. When high performance and portability are specified, the SN-15LF is an ideal choice for the bass section of a world class two way design.	General Specifications: Nominal Impedance 8 Ω Power 600 Watt (rms) SPL 1W@1M average sensitivity 98 dB Frequency Response 55Hz - 1500Hz Dimension Ø x H (cm) 38.9 x 17.6 Net Weight 4.3 kg (9.5 lbs) Shipping Weight 5.9 kg (13.0 lbs) Packing Dimension H x W x D (cm) 42.5 x 42.5 x 20.5 (1.3cu.ft) 16.7\" x 16.7\" x 8.1\" Physical Specifications: Magnet type Neodymium Voice Coil Diameter 76.2 mm (3 inch) Thiele/Small Parameters: Resonance Frequency Fs 54 Hz DC. Resistance Re 5.5 Ω Coil Inductance Le 0.35 mH Mechanical Q Factor Qms 6.92 Electrical Q Factor Qes 0.58 Total Q Factor Qts 0.53 BL Product BL 16.24 Tm Effective Moving Mass Mms 80.52 g Equivalent Cas Air-Load Vas 114.74 Liters Effective Piston Area Sd 0.085 Sqm Half-Space Efficiency Eff 3.18 % Airgap Height Hag 8.0 mm Voice Coil Height Hvc 18.0 mm Voice Coil Overhang Xmax 5.0 mm

The P Audio SN Series II features a wide variety of very high performance to value ratio Neodymium based transducers. The SN-15LF is an excellent example of P Audio\'s high performance design philosophy. This transducer features a 15 inch (389mm) diameter chassis coupled to a very high energy product Neodymium based permanent magnetic structure. The combination of this high energy product magnetic structure and a die cast aluminum chassis make the SN-15LF a very high output device that also features very low weight. The operating bandwidth of 55Hz to 1500Hz make the SN-15LF and ideal choice for the bass and vocal fundamental range response of a professional two way system design.

The cone material has been optimized for high internal damping and superior time domain performance in the vocal fundamental range. The performance parameters of the SN-15LF have been optimized for use in two way systems such as general purpose sound reinforcement systems where the high frequency response is provided by a high efficiency compression driver and horn.

High power handling is achieved through the use of advanced thermal capacity voice coil adhesives and very high temperature rectangular aluminum edge wound voice coils. When high performance and portability are specified, the SN-15LF is an ideal choice for the bass section of a world class two way design.

General Specifications:

Nominal Impedance 8 Ω

Power 600 Watt (rms)

SPL 1W@1M average sensitivity 98 dB

Frequency Response 55Hz - 1500Hz

Dimension Ø x H (cm) 38.9 x 17.6

Net Weight 4.3 kg (9.5 lbs)

Shipping Weight 5.9 kg (13.0 lbs)

Packing Dimension H x W x D (cm) 42.5 x 42.5 x 20.5 (1.3cu.ft)

16.7\" x 16.7\" x 8.1\"

Physical Specifications:

Magnet type Neodymium

Voice Coil Diameter 76.2 mm (3 inch)

Thiele/Small Parameters:

Resonance Frequency Fs 54 Hz

DC. Resistance Re 5.5 Ω

Coil Inductance Le 0.35 mH

Mechanical Q Factor Qms 6.92

Electrical Q Factor Qes 0.58

Total Q Factor Qts 0.53

BL Product BL 16.24 Tm

Effective Moving Mass Mms 80.52 g

Equivalent Cas Air-Load Vas 114.74 Liters

Effective Piston Area Sd 0.085 Sqm

Half-Space Efficiency Eff 3.18 %

Airgap Height Hag 8.0 mm

Voice Coil Height Hvc 18.0 mm

Voice Coil Overhang Xmax 5.0 mm
