SN Series II

SN-18ELF

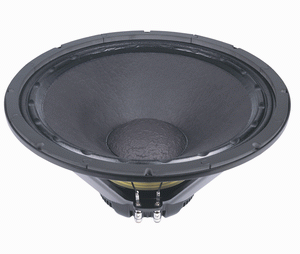

P-Audio SN-18ELF 600W 18" Extended Low Frequency Driver


Click here to download the Datasheet (PDF)

The SN 18ELF is an extended low frequency transducer intended for applications where ultra low frequency response is specified. The 18 inch (460mm) diameter chassis provides a large cross sectional area capable of very large acoustic volume velocities. The mechanical suspension system has been optimized for large linear excursion and is well suited for the rated bandwidth of 30Hz to 100Hz. All performance parameters have been fully analyzed and optimized using state of the art computer based analysis methods.


The SN-18ELF features a medium format 3 inch (76.2mm) diameter voice coil. This voice coil design utilizes rectangular aluminum wire in an edge wound configuration found in all professional high performance designs. The die cast aluminum chassis and light weight but very high energy product Neodymium magnetic system combine to produce an extremely light weight design.


The extended low frequency performance of the SN-18ELF make it an ideal choice when applications such as special low frequency effects are specified. The SN-18ELF is well suited for dance floor, mobile DJ and general purpose portable public address system designs. The advanced manufacturing systems employed at P Audio insure consistent and very reliable long term performance.

General Specifications:


  • Nominal Impedance 8 Ω
  • Power 600 Watt (rms)
  • SPL 1W@1M average sensitivity 96 dB
  • Frequency Response 30Hz - 100Hz
  • Dimension Ø x H (cm) 46.0 x 21.0
  • Net Weight 4.5 kg (9.9 lbs)
  • Shipping Weight 6.5 kg (14.3 lbs)
  • Packing Dimension H x W x D (cm) 49.5 x 49.5 x 24.5 (2.1cu.ft)
  • 19.5\" x 19.8\" x 9.6\"

    Physical Specifications:


  • Magnet type Neodymium
  • Voice Coil Diameter 76.2 mm (3 inch)

    Thiele/Small Parameters


  • Resonance Frequency Fs 29 Hz
  • DC. Resistance Re 5.5 Ω
  • Coil Inductance Le 0.38 mH
  • Mechanical Q Factor Qms 6.86
  • Electrical Q Factor Qes 0.57
  • Total Q Factor Qts 0.53
  • BL Product BL 16.70 Tm
  • Effective Moving Mass Mms 161.95 g
  • Equivalent Cas Air-Load Vas 345.08 Liters
  • Effective Piston Area Sd 0.116 Sqm
  • Half-Space Efficiency Eff 1.38 %
  • Airgap Height Hag 8.0 mm
  • Voice Coil Height Hvc 23.0 mm
  • Voice Coil Overhang Xmax 7.5 mm
