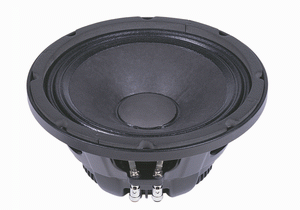

SN-8MB

When very compact and light weight loudspeaker systems are required the SN-8MB is an ideal design. Like all SN Series II designs, the SN-8MB was designed for a specific application. This 8 inch (213mm) diameter loudspeaker is ideal for applications where a very portable system or small enclosure size is specified. It is ideal for light weight two way compact systems and also ideally suited as a very high output small format mid bass driver in three way systems.

Like all loudspeakers in the SN Series II family, the SN 8MB features a Neodymium based permanent magnetic system mounted to a die cast aluminum chassis. This 8 inch design features a 2 inch diameter (50.8mm) voice coil design. The voice coil diameter is large compared to the cone diameter and this voice coil diameter ensures high reliability and high power handling. The operating bandwidth is 60Hz to 2000Hz. This response range is optimized for two way system designs for both small format sound reinforcement and installed public address designs.

The SN-8MB is also ideal for high performance direct radiators and horn loaded mid bass designs. When used from 150Hz to 2000Hz, this design can provide superb mid band and vocal band performance levels. The new cone material provides a very high degree of vocal clarity and intelligibility.
